Key Features and Benefits

Outstanding Performance

• ISE unit with independent arm for maximizing throughput (up to 600+230 tests/h) and productivity
• Dual side structure for minimum downtime
• Capacity of 1800 samples/day
• Continuous loading and uninterrupted photometer measurements
• Flexible use for various applications ( Clinical Chemistry – Human, Vet, Drug of Abuse , Therapeutic Drug Monitoring, Food and Beverage )



Maximum Efficiency

• Nonstop operation for improving turnaround time
• Auto Filling Draining Module for extended walk-away ( >6h)
• Dual concentric reagent tray for controls and calibrators



Affordability

• Long-life cuvettes for low operating cost
• Minimum water consumption for high cost-effectiveness (<6l/h)
• Small footprint for space-saving
• Small reagent kits
• Marginal solution consumption
• Biohazard waste



Enhanced User Experience – All New Software

• Intuitive and easy-to-use User Interface

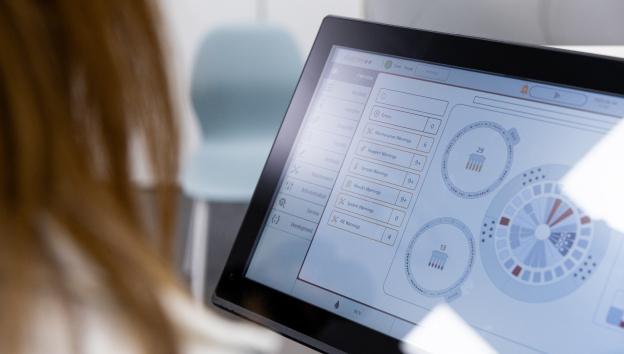

• Built-in Panel PC with touchscreen for minimizing footprint
• Comprehensive dashboard for uncompromised usability
• Real time worklist provides precise info on sample schedule
• 2D BC for controls and calibrators values
• Method priority and delta check



All Pictus Family members ensure seamless compatibility with same reagents, controls, calibrators, consumables and methods.

Specifications

• Water consumption: <6L/hour
• Optional Filling/ Draining Module
• Throughput: Up to 600 photometric + up to 230 ISE tests/h
• Analysis modes:
  • Fully and optimized Random access
  • Sample or batch mode
  • Real STAT
  • Continuous reagents and samples loading
  • Automatic sample re-run
  • Wake up and stand-by mode
• All-New Software features:
  • Comprehensive Dashboard
  • 2D barcodes for autoloading calibrator and control values
• Method types:
  • 1point end point
  • 2point end point
  • Open channels: 5 research and 95 quality assured POC (Programmable Open Channels)

• Calibration:

  • Automatic calibration
  • Calibration formulas: linear, multilinear, polynomial, sigmoidea, Logit4, Logit5, spline
• Samples:
  •  Initial rack quantity: 5 x 19 samples with continues loading up to 99 racks providing a capacity of 1800 samples per day

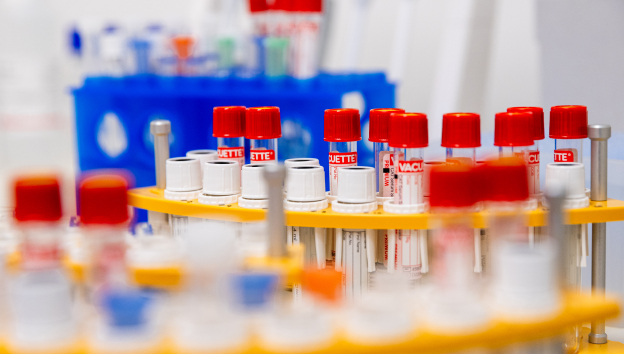

  • Primary tube (length up to 100 mm),
  • Pediatric vials
  • 2 types of adaptors to accommodate variety of sample tubes and cups (ext. diameter 11.5-16mm)
  • Sample type: Human body fluids

• Reagents and reagent tray:

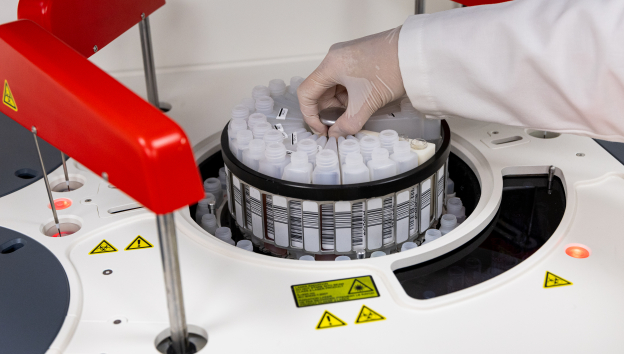

  • Dual concentric reagent tray
  • Reagent cooling compartment: 72 cooled positions 8+/- 2oC

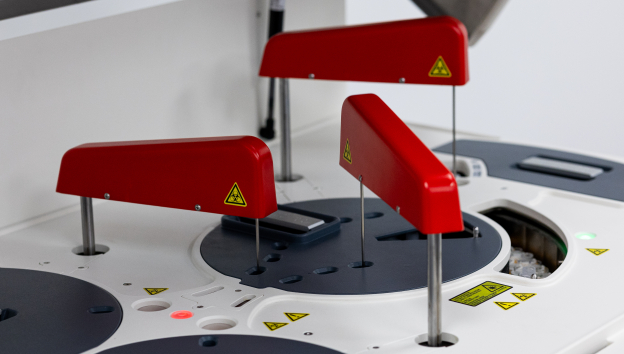

• Reaction tray: Two pipetting arms for both sample and reagent
• Reagent bottle size: 25, 45 and 70Ml
• BCR: On-board samples and reagents barcode recognition
• Reaction volume:180μl - 650μl
• Optional ISE Unit: Independent pipetting for ISE module
• Operating environment:
  •  Temperature +18ºC to +30ºC
  •  Humidity: 40% to 80%
  •  Atmospheric pressure: 600 to 1050hPa.
• Dimensions:
  •  114 (W) x 78 (D) x 129 (H) cm (closed top cover, without Panel PC)
  •  162 (W) x 78 (D) x 178 (H) cm (open top cover, with Panel PC)
• Weight: Analyzer: 250kg



For full product specifications, please refer to the User Manual.



*​This product is not currently cleared for sale in the USA. For more information regarding product availability please contact the appropriate regional Diatron office
