Abacus 5
Walk-away Intelligence

The Abacus 5 system is a compact, bench top, 60 test/hour, 5-part WBC differential analyzer with two sampling modes: a cap piercing mode for closed tube sampling and another for open tubes.

The Abacus 5 system is a compact, bench top, 60 test/hour, 5-part WBC differential analyzer with two sampling modes: a cap piercing mode for closed tube sampling and another for open tubes.

Key Features and Benefits

  • ReliableThe long lifetime diode laser, diagnostic flagging system, and cap recognition feature ensures optimal performance at all times and prevents sampling errors.

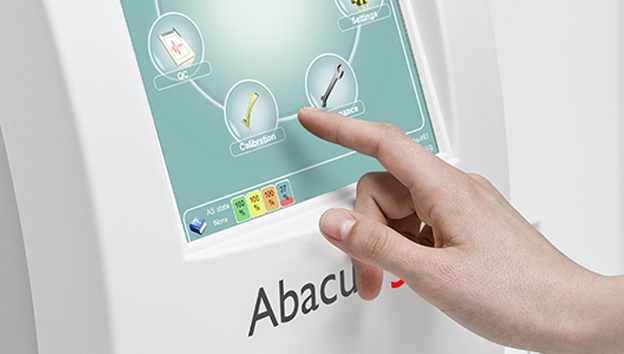

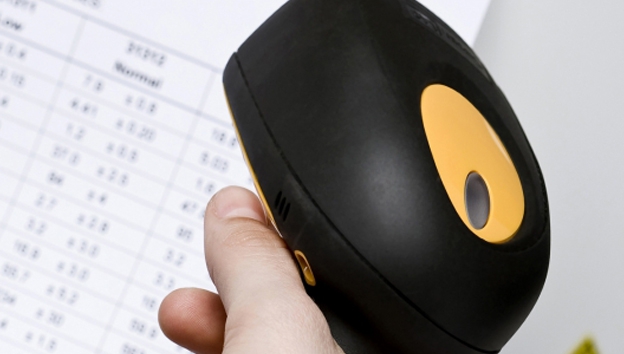

  • User friendly - A large, color touch screen allows easy, fast, and efficient operation. The integrated barcode reader provides safe and rapid sample processing either manually or via an optional 100-sample capacity autoloader. This hematology analyzer features a logical multi-lingual operating menu and the Windows-based software enables easy connection to a host computer and printers. Results are displayed with 2 histograms and 2 scattergrams to provide maximum patient information.

  • EfficientThe Abacus 5 provides a complete 26 parameter report including optical determinations of the 5-part WBC differential count. It offers open and closed tube sampling options and has a throughput of 60 samples per hour in either stat or autoloader mode. In addition, the analyzer has a 100,000-result database capacity.

  • Space saving The Abacus 5 hematology analyzer is one of the smallest 5-part differential analyzers, requiring minimal bench space. This makes it an ideal system for use in space-restricted environments such as clinics and small to medium laboratories.

  • Cost Efficient The Abacus 5 uses only 3 reagents to perform an analysis, plus a small volume of cleaner, thus providing a 5-part differential result at a very competitive price. In addition, this hematology analyzer requires minimal maintenance, thus reducing its operational downtime.

  • Case Study Book Case Study Book is available for perfect interpretation of scattergrams.

Specifications

  • Throughput: 60 tests/hour
  • Parameters: a CBC+5 DIFF mode (26 parameters) - 2 histograms: RBC, PLT; 2 scattergrams: 4 diff, WBC, LYM, MON, NEU, EOS, BAS, LYM%, MON%, NEU%, EOS%, BAS%, RBC, HCT, MCV, RDW (sd/cv), HGB, MCH, MCHC,PLT, PCT, MPV, PDW (sd/cv), P-LCC, P-LCR
  • Laser light scattering technology for 5-part WBC differential
  • Sample volume: 110 μl of whole blood

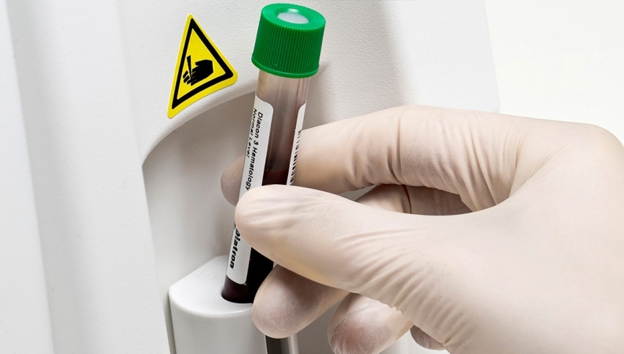

  • Closed and open tube sampling, optional autosampler
  • 3 cyanide-free reagentsDiluent, Lyse, Stopper
  • Data storage capacity: 100,000 records
  • Operating environment: Temperature: 15–30 °C
  • Relative humidity: Max 80% (non-condensing)
  • Multilingual user interface: English, French, Spanish, Croatian, Hungarian, Italian, Polish, Portuguese, Russian, Turkish, Chinese, German, Greek
  • Size (Width x Depth x Height) 40 cm x 50 cm x 45 cm, 16” x 20” x 18”
  • Weight - 35 kg, 77 lbs



Options

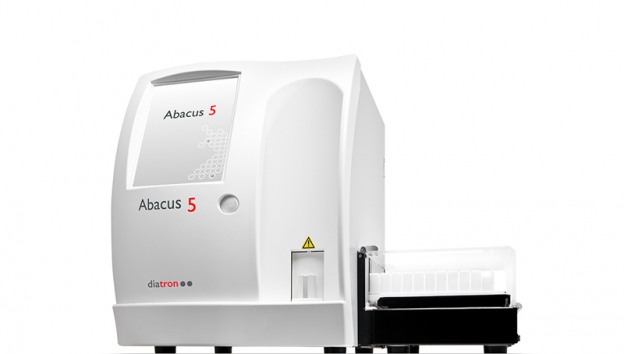

An option to make your life easier - Autosampler

  • Sample capacity -100 tubes: 10 racks with 10 sample tubes each
  • Acceptable primary tubes: Monovette, Vacutainer, Vacuette, Terumo, Greiner
  • Built-in barcode reader
  • Built-in sample mixer
  • Cap recognition (only capped tubes are mixed and processed)
  • Size (Width x Depth x Height): 30 cm x 30 cm x 18 cm, 12” x 12” x 7.2”
  • Weight: 10 kg, 22 lbs

Abacus 5 Optional Small Sample Module (SSM)

  • Aspirated sample only 25 μl (standard 110 μl)
  • The module can either be added during manufacture or retro-fitted to analyzers already in the field.

The facelift version of Abacus 5 is Aquarius 5retic. Product broschure.

*The Abacus 5 is available for sale in most markets-US and non-US . For more information of precise product availability please contact the appropriate regional Diatron office.

*The Small Sample Module is only available in non-US markets.
