Throughout life, we learn from the simple to the most complex of ideas. At Diatron, our users’ requirements are always uppermost in our mind and for this reason we have created the Aquarius 3, our latest 3-part diff hematology analyzer.
Throughout life, we learn from the simple to the most complex of ideas. At Diatron, our users’ requirements are always uppermost in our mind and for this reason we have created the Aquarius 3, our latest 3-part diff hematology analyzer.
Key Features and Benefits
- True closed system - provides complete protection
- Hidden sample holder - prioritizes operator safety
- User-friendly interface - easy to learn and operate

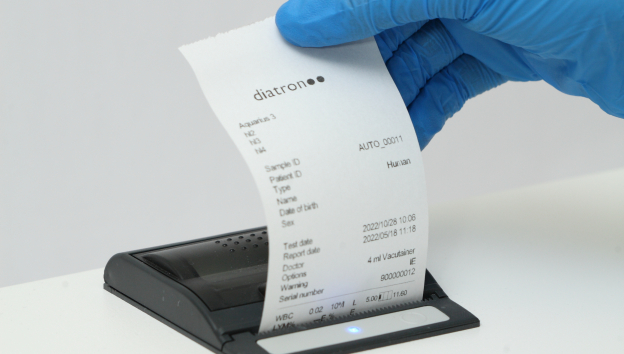

- External, built-in printer - convenient, on-the sport result documentation
- Balanced between cost and benefit - affordable solution that delivers reliable performance without unnecessary expenses
- Optimized workflow - faster and smoother processes
- Touchscreen with color LCD - clear visualization for a better user experience

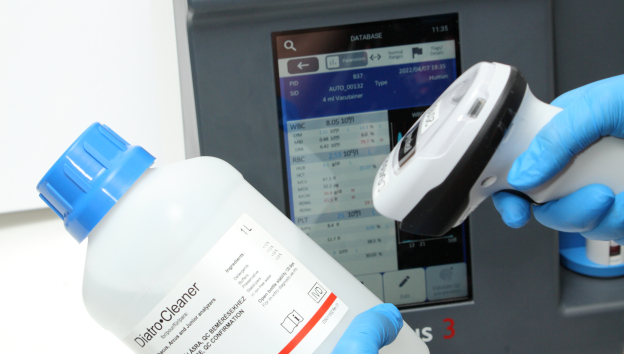

- (Manual) bar code scanner - quick and accurate sample identification
- Small reagent consumption - lower running costs and less reagent replacement
Hematology doesn't need to be difficult, CBC with Diatron is just as easy as ABC!
ATTRACTIVE
With a sleek, new modern design, the Aquarius 3 interface offers a positive touch and feeling, with all actions designed to increase efficiency, saving time to perform other important tasks.
BALANCED
The combination of technology and simplicity gives all the required information, reducing the unnecessary steps to a minimum whilst maintaining the balance between cost and benefit for patients and users alike.
CLEVER
The new Aquarius 3 software features a high level of patient management and workflow optimization to avoid repetition whilst only having a small reagent consumption. The Aquarius 3 is the ideal analyzer for you to take your workflow to the highest level of competence.
TRUE CLOSED SYSTEM
The newly printed QR code on the reagent label, together with our long-established hardware key, provides complete protection against the use of non-Diatron reagents in the system.
All critical parameters of our reagents are fully validated prior to release. Our reagents are highly stable, offering a shelf life of up to 48 months from the date of manufacture and up to 120 days of on-board stability.
The combination of Diatron reagents and Diatron analyzers ensure the optimal system performance and quality of results.
Specifiations
- Throughput: 80 tests/hour
- Parameters: 22 hematology parameters, including 3-part differential: WBC, LYM, MID, GRA, LYM%, MID%, GRA%, RBC, HCT, MCV, HGB, MCH, MCHC, PLT, PCT, MPV, P-LCC, P-LCR, RDW-CV, RDW-SD, PDW-CV, PDW-SD
- Light absorbance for HGB measurement
- Sample volume: 25 μl of whole blood in normal mode, 50 μl of pre-diluted blood
- Sampling method: open tube system
- Calibration: manual or automatic
- Data capacity: 10,000 results
- Built-in thermal printer module
- Display: 800 x 480 dots, color LCD
- Power requirement: 12 V DC, 5 A, 60 W max.
- 1D/2D barcode scanner
- 15+ languages
- Size (Width x Depth x Height): 28 cm x 40 cm x 37 cm / 11” x 16” x 15”
- Weight: 12 kg, (26 lbs)
