Abacus Vet5
Animal Healthcare at its Best

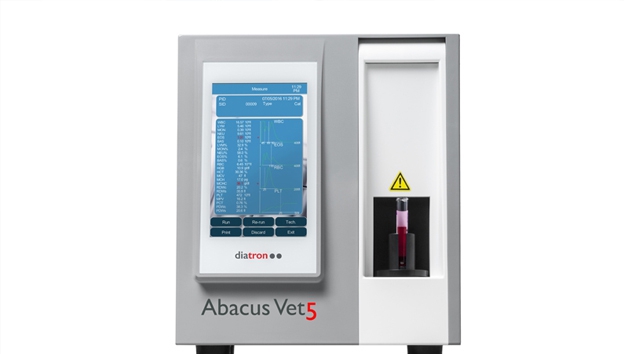

The Abacus Vet5 offers 5-part diff results for animal healthcare. The analyzer features a large touch screen and has an intuitive user interface to offer an optimal solution for veterinary clinics and practices which require a high quality hematology analyzer.



The Abacus Vet5 offers 5-part diff results for animal healthcare. The analyzer features a large touch screen and has an intuitive user interface to offer an optimal solution for veterinary clinics and practices which require a high quality hematology analyzer.



Key Features and Benefits

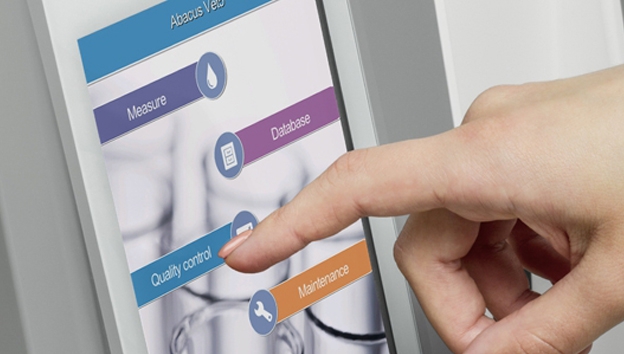

  • Easy to use – With its large capacitive touch screen and user-friendly interface allows accurate data entry and monitoring of results and histograms enabling fast and efficient operation. Results can be retrieved via an on-board printer or an external printer. For those practices/clinics requiring it the system can easily connected with a host computer via the HL7 connection or via the serial communication port.
  • Convenient – Its compact size and associated reagent pack mean that the system does not need much space and storage and shipping of reagents is simple.
  • High performance - The Abacus Vet5 offers 5 part differential WBC results on Dog, Cat, Cattle, Horse, and 3 part differential WBC results on Mouse, Rat, Rabbit, Ferret, Sheep, Goat, Pig, Guinea Pig and Primate.
  • Reliable and efficient- Each Abacus Vet5 analyzer is almost maintenance-free resulting in minimal downtime and can store up to 5000 results.

Specifications

MEASUREMENT

  • Throughput: Up to 25 samples/hour
  • Parameters: 24 hematology parameters, including 5-part WBC differential: WBC, LYM, MON, NEU, EOS, BAS, LYM%, MON%, NEU%, EOS%, BAS%, RBC, HCT, MCV, RDWc, RDWs, HGB, MCH, MCHC, PLT, PCT, MPV, PDWc & PDWs
  • Impedance technology
  • Sample volume: 25/50 µl of whole blood in 3/5 part mode
  • Sampling method: Open tube system with automatic sample rotor
  • Sample profiles
    • Five-part mode: Dog, cat, horse and cattle
    • Three-part mode: Mouse, rat, rabbit, ferret, pig, sheep, goat, guinea pig and primates



REAGENTS

  • Reagent pack containing Isotonic Diluent (Dil Vet), Lyse Vet, Diff Vet5, Cleaner & Rinse Vet
  • Hardware key protected pack
  • Test size up to 200 measurements



USER INTERFACE

  • Easy-to-use, menu driven user interface without hardware function buttons
  • Data storage capacity: Up to 5000 results, including histograms
  • Printer options: Built in thermal printer
  • Trend function allows to display with a Levey-Jennings chart the selected records from the database



PHYSICAL PARAMETERS

  • Size (Width x Depth x Height): 31,5 cm x 27,5 cm x 37 cm (12.4” x 10.8” x 14.5”)
  • Weight: ~13 kg, 28.6 lbs



*This product is not currently cleared for sale in the USA and only available in non-US markets. For more information of precise product availability please contact the appropriate regional Diatron office.
