Abacus Junior 30
Ideal for Small Laboratories

The Abacus Junior 30 is the entry-level model in the Diatron range of hematology analyzers. It is a compact, bench top, 30 tests/hour, 22 parameters, 3-part WBC differential system. The Abacus Junior 30 has a practical, simple to use color touch screen with an easy to follow intuitive user interface. The system is the ideal solution for clinical laboratories looking for a reliable, safe, accurate and easy to use CBC analyzer.

The Abacus Junior 30 is the entry-level model in the Diatron range of hematology analyzers. It is a compact, bench top, 30 tests/hour, 22 parameters, 3-part WBC differential system. The Abacus Junior 30 has a practical, simple to use color touch screen with an easy to follow intuitive user interface. The system is the ideal solution for clinical laboratories looking for a reliable, safe, accurate and easy to use CBC analyzer.

Key Features and Benefits

  • Ease of use - The Abacus Junior 30 hematology analyzer features a sophisticated but easy-to-use, multilingual operating menu. Its color touch screen offers selectable user modes, device statistics, icons, and function keys. This allows for rapid, accurate patient data entry and monitoring of test results. The Abacus Junior 30, like all other Diatron products, has been designed to be low maintenance, thus saving time and money.

  • High performance - The Abacus Junior 30 provides a complete 22 parameter hematology report to include 3-part WBC differentiation for a variety of patient profiles with no preparation time, all within about 2 minutes. All functions are accessed via an optimized user interface enabling the operator to work quickly and efficiently. There are 4 USB ports in the hematology analyzer, allowing it to be easily connected to external devices and to upload any software updates simply.

  • Reliable and efficient - Innovative design in combination with the use of high precision electronic and mechanical components ensure precise and reliable CBC results, even in the most demanding of clinical environments. The automatic sample rotor eliminates the risk of sampling errors and contamination due the operator inadvertently touching the sample needle and ensures operator safety. The hematology analyzer instrument has a comprehensive QC package providing Levy-Jennings plots for up to 6 QC levels plus a range of self-diagnostic functions assuring reliability and accuracy.

Specifications

  • Throughput: 30 tests/hour
  • Parameters: 22 hematology parameters, including 3-part differential: WBC, LYM, MID, GRA, LYM%, MID%, GRA%, RBC, HCT, MCV, HGB, MCH, MCHC, PLT, PCT, MPV, P-LCC, P-LCR, RDW-CV, RDW-SD, PDW-CV, PDW-SD
  • Volumetric impedance method
  • Sample volume: 25 μl of whole blood

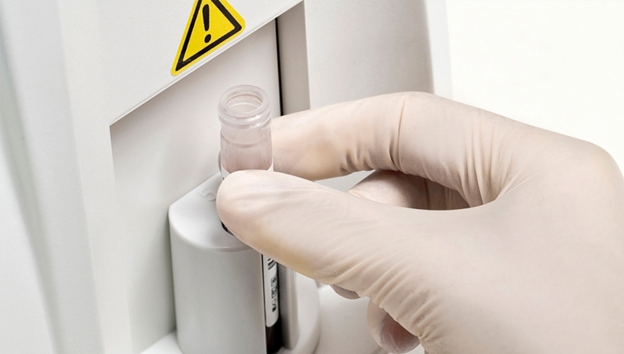

  • Sampling method: Open tube system with automatic sample rotor
  • Calibration: Automatic or manual
  • Reagents: Environmentally friendly, azide free Diluent and Cleaner, and cyanide-free Lyse
  • Data storage capacity: Maximum 10 000 results, including RBC, PLT, WBC 3-part histograms and full patient data

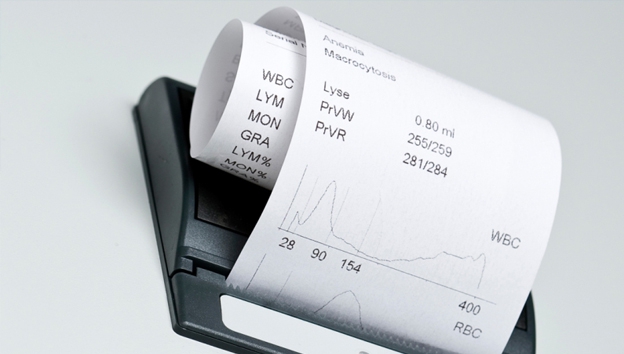

  • Built-in thermal printer

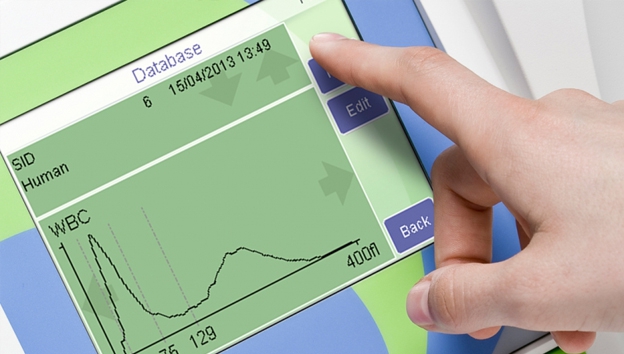

  • User interface: Color TFT touch screen
  • Multi-user mode
  • Multilingual user interface
  • Size (Width x Height x Depth): 12.6 x 10.2 x 14.4 in (32 x 26 x 37 cm) 12˝ x 14˝ x 10˝
  • Weight: 12 kg, 26 lbs

Option

Optional manual barcode reader



*This product is not currently cleared for sale in the USA and only available in non-US markets. For more information of precise product availability please contact the appropriate regional Diatron office.
